Gemological Instruments

!

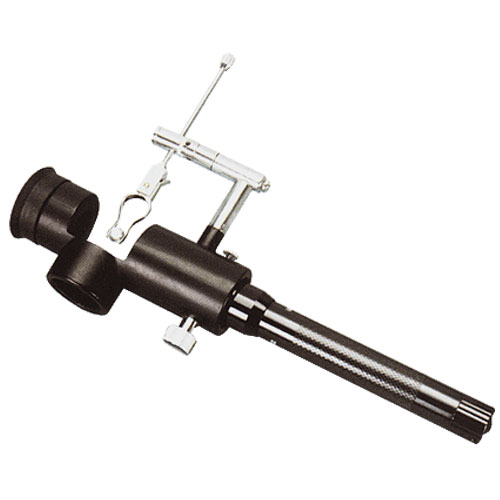

H 1221S

!

Super Darkfield Loupe

Its innovative design and features make all other traditional darfkield loupes obsolete. Dual 21mm focusing triplet lenses.
Illuminated darkfield / brighfield illumination. Built-in removable gem clip. Features a 20x side lens and a 10x top lens.
Includes AA alkaline batteries and a protective carrying case.
Identifies: fractured filled stones; doubly refractive moissanite.
Views girdle inscriptions and more!

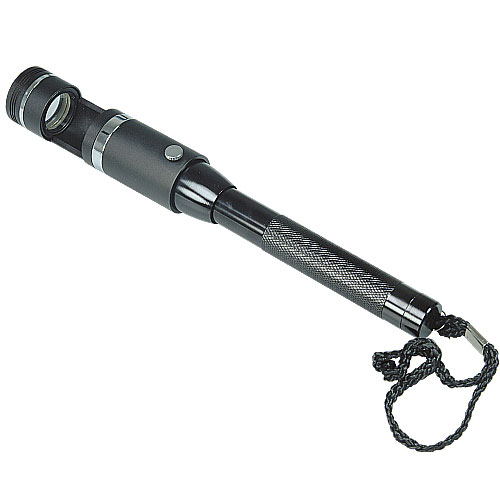

H 1221D

!

Darkfield Loupe

A light source with a dark field and a triplet lens give the same effect of the microscope view. Easy to identify inclusions. Available in 18mm 10x.

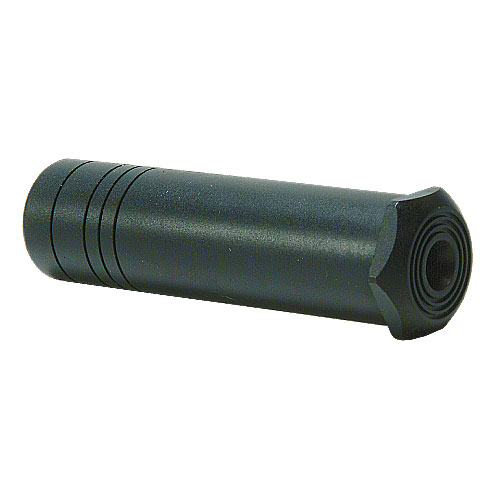

H 1326

!

Calcite dichroscope

Pleochroic colours in a gem can be seen side by side.
Easy to separate ruby from spinel or garnet. Can also separate DR gems.

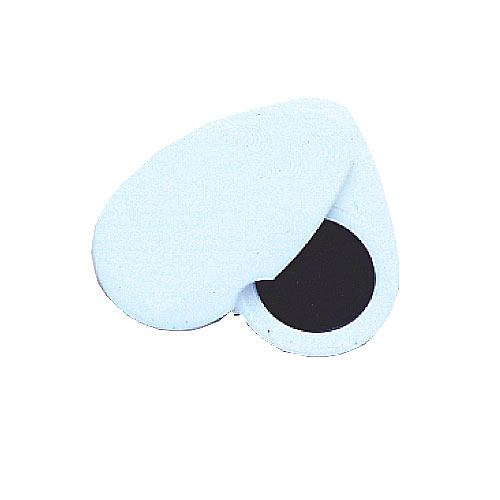

H 1324 - H 1324A - H 1324B - H 1304C

!

Filters

Ideal to separate green, red and blue stones from others.Also helps to detect dyes in certain gems.

H 1324 - Emerald filter

H 1324A - Jadeite filter

H 1324B - Chelsea filter

H 1304C - Ruby filter

H 1481/C - H 1481

!

Ultraviolet short/long wave

Fluorescence helps separate diamonds from simulants, sapphire from synthetic sapphire, emerald from synthetic emerald, ruby from garnet and glass or synthetic spinel from gem they imitate. Unit helps spot dye in some lavender jadeite, oils in emeralds and assembled stones whose parts fluorescence is different.

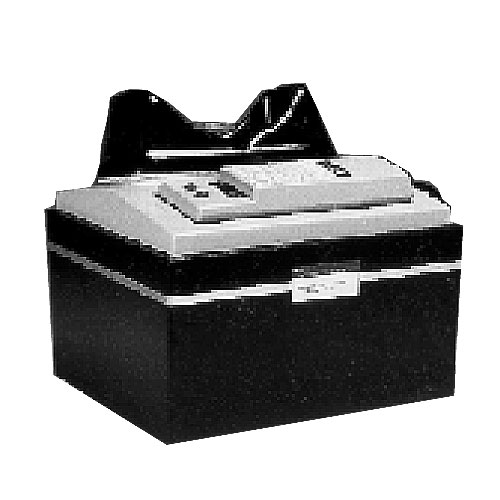

H 1481/C - Cabinet for UV lamp

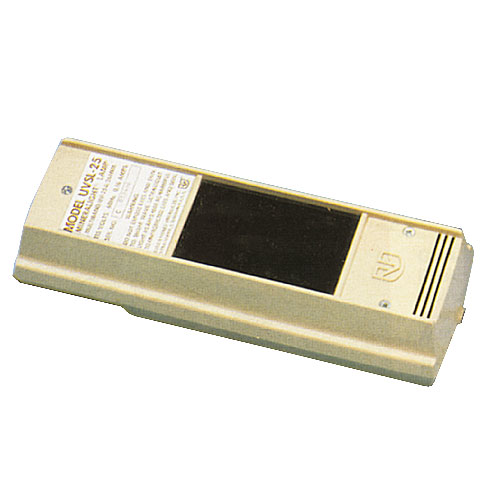

H 1481 - Compact UV short/long wave lamp

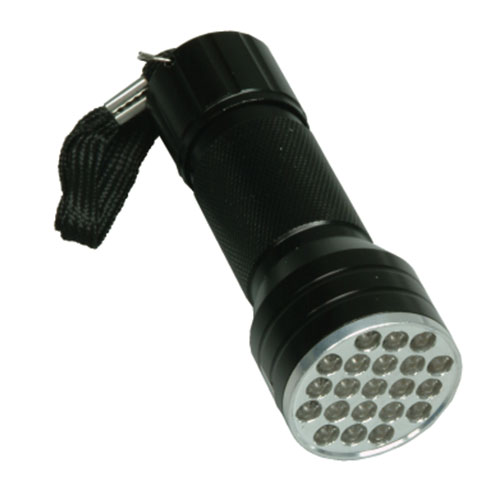

H 6000

!

400nm UV LED torch

Wavelenght: 395-400nm

Brightness: 11000MCD

Power: 3 AAA batteries.

Battery life: 6-8 hours

Size: L93mmxD29mmxD26mm

Weight: 50g

Body: aluminium alloy

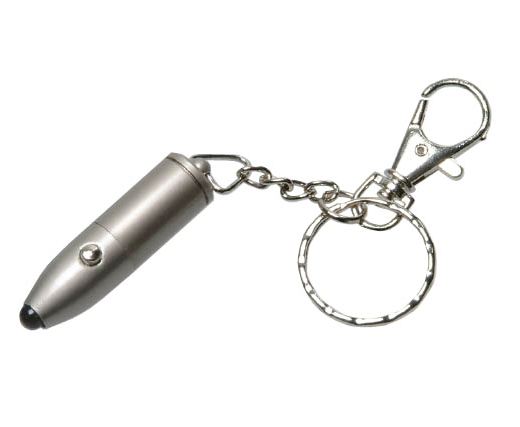

H 1285

!

Intel Pocket UVP

400nm

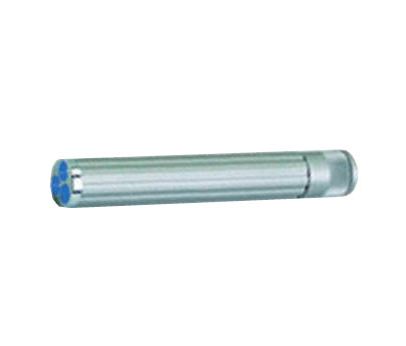

H 1286

!

3 LED UV light

Pocket size UV light, easy to carry.

Enables easy detection of fluorescence.

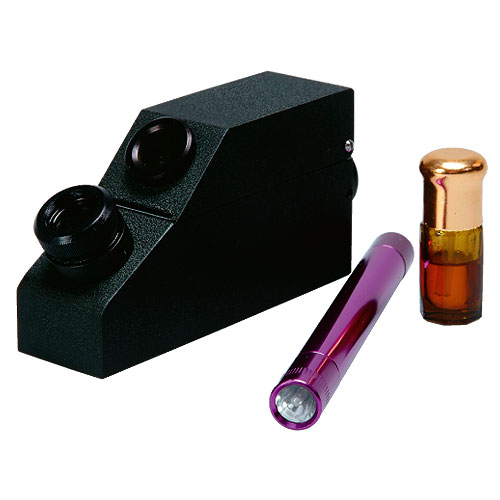

H 1205

!

Refractometer

To separate natural stones from the others and also from imitations.

It measures the refractive index or speed of the light in the stone compared to the speed of the light in the air.

Able to tell if the stone is doubly refractive when given two different values of reading.

Comes in a carrying box.

Comes with light and sample R.I. liquid.


H 1205G - R.I. liquid 1.80 small bottle (about 5ml)
H 1205H - R.I. liquid 1.80 medium bottle (about 7ml)

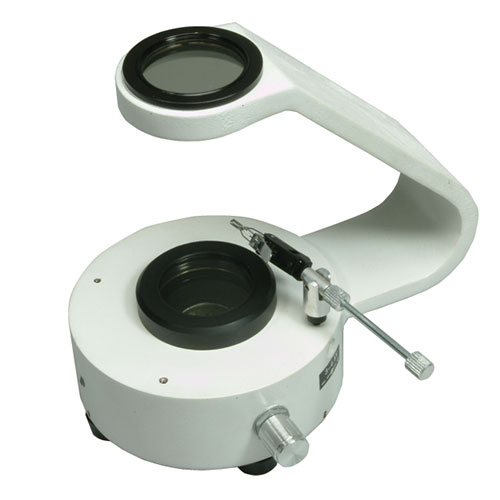

H 1201

!

Portable size cordless polariscope

Polariscope with LED illumination; adjustable brightness.

Power supply: Li-Ion rechargeable battery, battery charger AC100-240V/50-60HZ is included.

Polarized lens: Ø 40mm rotable

Comes with gem stone clip.

Volume: 17cm (H) x 16cm (D).

Base diameter: Ø 11cm

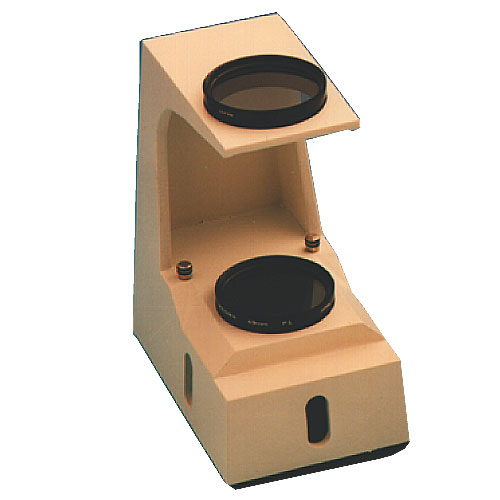

H 1208

!

Polariscope

To detect doubly or singly refractive stone.

Able to tell if a DR stone has one optic axis or two.

Able to detect strain in stones as diamonds etc.

Rotating glass polarizing filters on top and at the base.

With built-in light.

The opening in front can be used as light source for a refractometer.

H 1208S

!

Conoscope

Dimensions: Ø 20mm – height 10mm

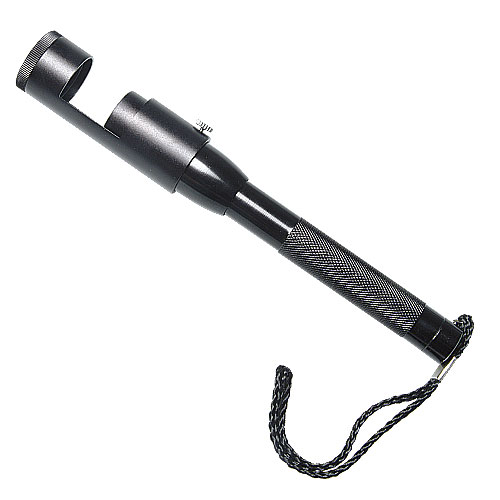

H 1208A

!

Pocket polariscope

with light

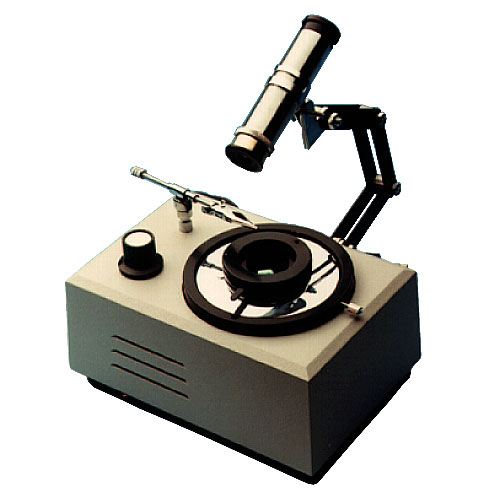

H 1204

!

Spectroscope (complete set)

Basic instrument, second only to the microscope, for identification of natural stone to synthetic stones or imitations. It may also detect irradiated from natural colour diamond as well as dyed vs natural colour jadeite.

H 1204A - Base only (with iris, stone holder and built-in light)

H 1204B - Spectroscope only

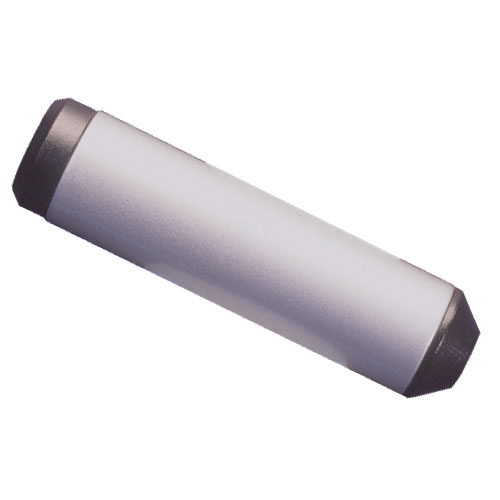

H 1204E

!

Mini Spectroscope

dimension: 5cm

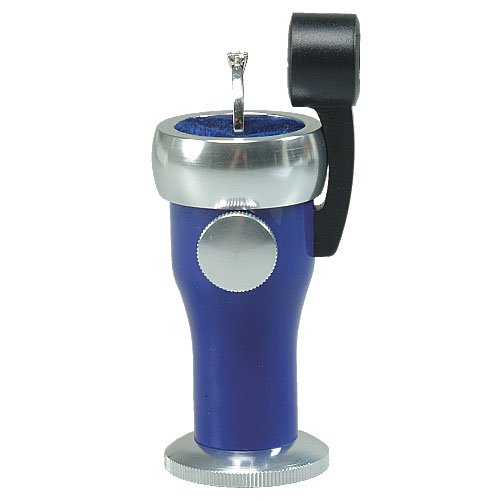

H 1217

!

Diamond inscription viewer

Ring support with loupe 20x for checking of diamond inscription.

Adjustable loupe position for an easy focus.

Plastic body.

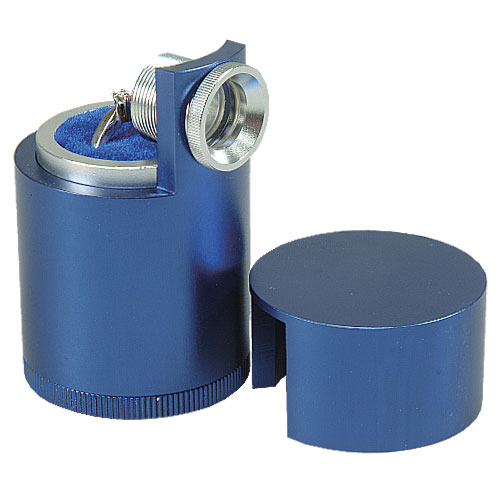

H 1216

!

Diamond inscription viewer

Ring support with loupe 20x for checking of diamond inscription.

Adjustable loupe position for an easy focus.

Metal body.

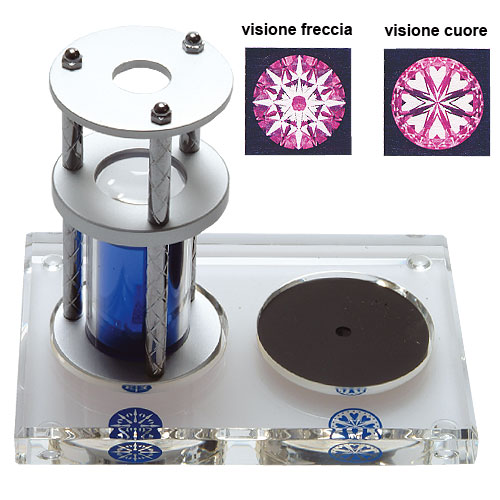

H 1213

!

Dia cut loupe

The finest cut round brilliant diamonds, with their perfect symmetry, display a unique optical symmetry pattern only when viewed through this special scope.

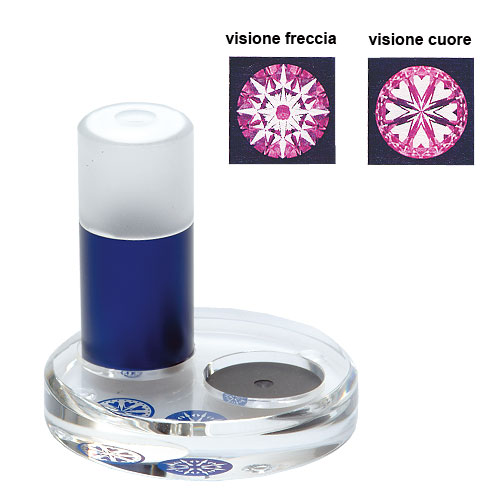

H 1215

!

Dia cut loupe

The finest cut round brilliant diamonds, with their perfect symmetry, display a unique optical symmetry pattern only when viewed through this special scope.

A 1212

!

Presidium Refractive Index Meter II

By accurately measuring the quantitiy of light reflected through the stone, Presidium Refractive Index Meter II (PRIM II) is able to separate diamonds, moissanites and other colored gemstones via its Refractive Index (RI). The immediate reading is given by a display and unlike the traditional refractometers it does not require the usage of RI liquid. The new software enables the user to further eliminate the list of possible colored gemstones by entering known values such as color, hardness and S.G. value.

For more information regarding gemstone properties, common found locations can also be easily found.

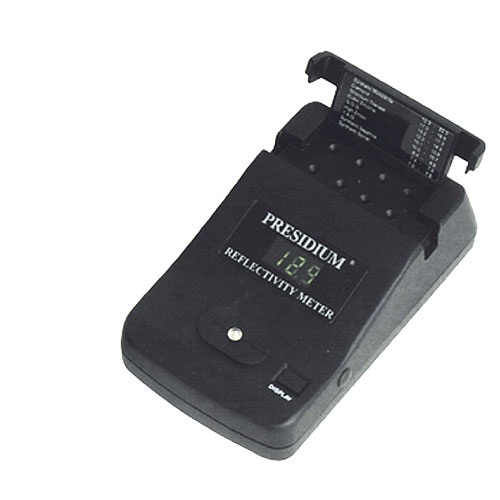

A 1205

!

Presidium Reflectivity meter

Using reflectivity to determine diamonds and any existing imitation. Quality and quantity of light reflected through the stone give you an instant reading of its reflective index.

An easy reference chart will determine the reflective index.
